รายละเอียดสินค้า
สถานที่กำเนิด: กวางตุ้งจีน
ชื่อแบรนด์: Miracle Bean
ได้รับการรับรอง: CE ROHS
หมายเลขรุ่น: XH-100W-12
เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ: 50 ชิ้น
ราคา: negotiate
รายละเอียดการบรรจุ: กล่องหรือไม้
เวลาการส่งมอบ: 5-15 วัน
เงื่อนไขการชำระเงิน: T/T, Western Union
สามารถในการผลิต: 50000 ชิ้นต่อเดือน
1แรงดันไฟฟ้าอินพุต: |
200-220V AC |
2อุณหภูมิในการทำงาน: |
-20 ℃ ~+60 ℃ |
3การจัดอันดับ IP: |
IP67 |
4ประสิทธิภาพ: |
93.5% |
5เกรด IP: |
IP65 |
6ชื่อรายการ: |
XH-100W |
7การป้องกันแรงดันไฟฟ้า: |
ใช่ |
8PCB: |
อัล |
9ความถี่เอาต์พุต: |
43-60เฮิร์ต |
10การจัดอันดับกันน้ำ: |
IP67 |
11ความชื้นสัมพัทธ์ในการทำงาน: |
20%-90%Rh |
12การบรรจุหีบห่อ: |
10 ชิ้น / กล่อง |
13แหล่งกำเนิดแสง LED: |
ไดรเวอร์ปัจจุบันคงที่ |
14ขนาด: |
206*37*22มม |
แรงดันไฟฟ้าอินพุต: |
200-220V AC |
อุณหภูมิในการทำงาน: |
-20 ℃ ~+60 ℃ |
การจัดอันดับ IP: |
IP67 |
ประสิทธิภาพ: |
93.5% |
เกรด IP: |
IP65 |
ชื่อรายการ: |
XH-100W |
การป้องกันแรงดันไฟฟ้า: |
ใช่ |
PCB: |
อัล |
ความถี่เอาต์พุต: |
43-60เฮิร์ต |
การจัดอันดับกันน้ำ: |
IP67 |
ความชื้นสัมพัทธ์ในการทำงาน: |
20%-90%Rh |
การบรรจุหีบห่อ: |
10 ชิ้น / กล่อง |
แหล่งกำเนิดแสง LED: |
ไดรเวอร์ปัจจุบันคงที่ |
ขนาด: |
206*37*22มม |

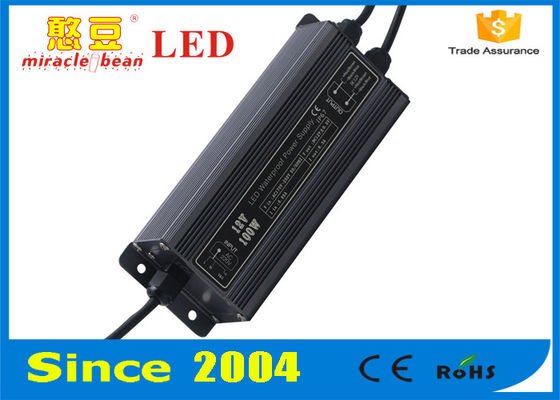

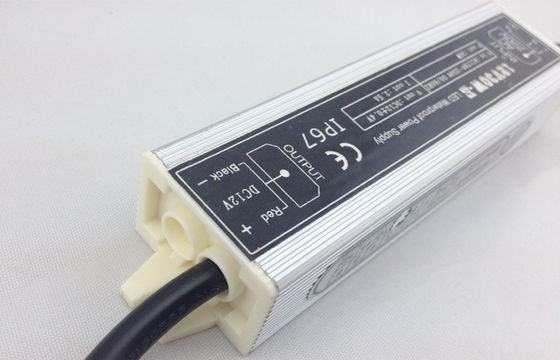

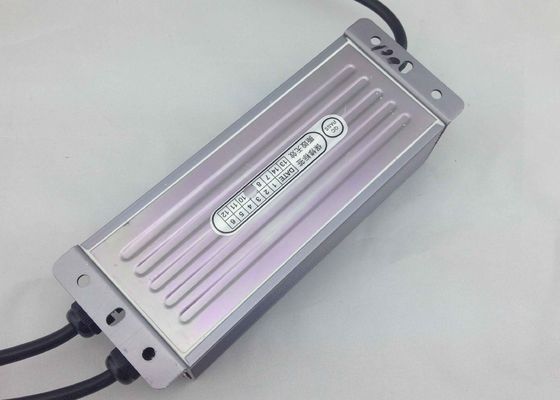

IP67 Waterproof Constant Voltage LED Driver Waterproof 12V 100W LED Switching Power Supply
Product Description
Model |
XH-FY100W-120-1 |
|
DC output voltage | 12V | |
Rated output current | 33.3A | |
Output current range | 0~33.3A | |
Ripple and noise | 180mVp-p | |
DC output power | 100W | |
Efficiency | 93.5% | |
Input voltage |
200-240VAC |
|
Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) | |
Store temperature and humidity | -40~+85centigrades 10-95% RH | |
Weight | 1.35kg | |
Input frequency | 60Hz |
Product Advantages of Power Supplies
1. Stable Output: Delivers consistent voltage and current, effectively protecting connected devices from damage caused by power fluctuations.
2. High Efficiency: Boasts high energy conversion rate (often 85%+), reducing energy waste and lowering overall operating costs.
3. Wide Compatibility: Works with various input voltages (e.g., 100-240V AC) and supports multiple device types, meeting diverse usage needs.
4. Reliable Protection: Equipped with over-voltage, over-current, short-circuit, and over-temperature protection, enhancing safety and durability.
5. Compact & Portable: Small in size and light in weight, saving installation space and facilitating easy movement or carrying.
Our Advantages
Our Services
FAQ
2. Q: How long is the warranty period?
A: 2 Years
3. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
Product Show
